DIN Rails

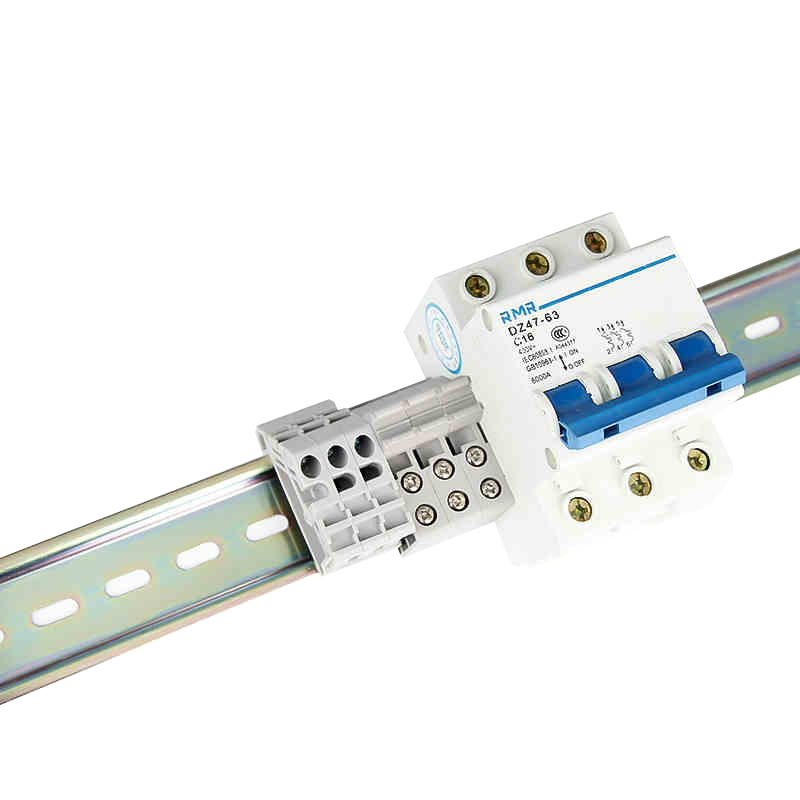

C45 series DIN rails are essential components used for mounting electrical and control devices in cabinets or enclosures. Made from high-quality materials like steel, stainless steel, and aluminum, these rails are designed to offer durability and corrosion resistance, ensuring reliable performance in various industrial and commercial applications. Available in a variety of thicknesses and finishes, they can be tailored to meet specific needs, whether for lightweight or heavy-duty installations.
Whether you require a galvanized white finish for aesthetic or protective reasons, or need stainless steel or aluminum for enhanced durability and rust resistance, the C45 series offers a versatile range of options.

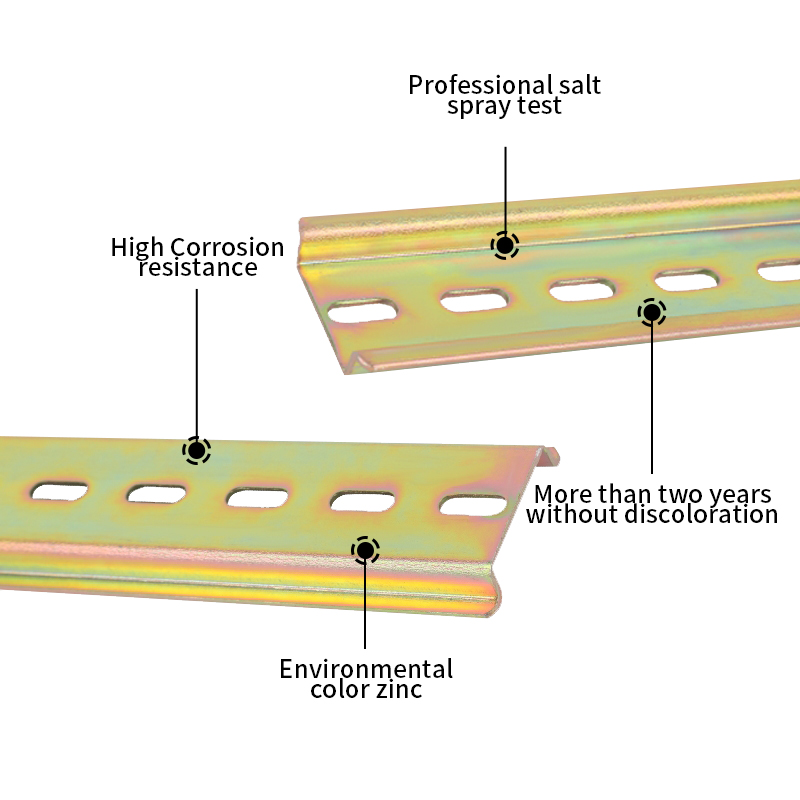

Key Features
High Corrosion Resistance
The DIN rail is designed to withstand corrosion, ensuring durability and long-lasting performance, even in challenging environments.Professional Salt Spray Test
The rail has undergone a professional salt spray test to verify its resistance to corrosion in harsh conditions.Environmental Color Zinc

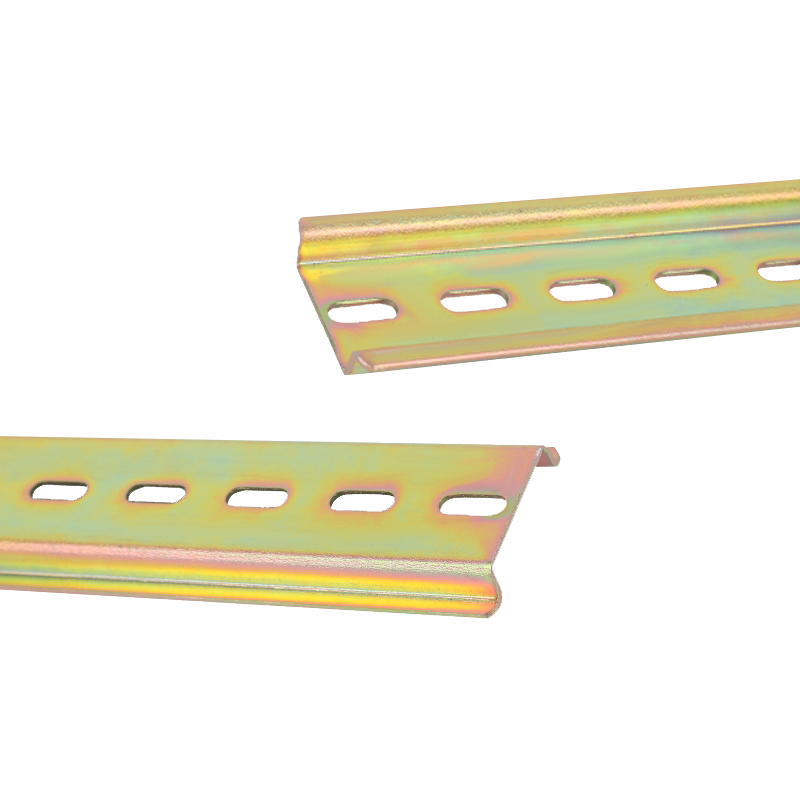

The color zinc coating is environmentally friendly and contributes to the rail’s protective properties.More Than Two Years Without Discoloration
The coating is designed to last, maintaining its appearance and protective properties for over two years without any discoloration.
Product Specifications
| Feature | Details |
|---|---|
| Type | C45 |
| Materials | Steel, Stainless Steel, Aluminum |

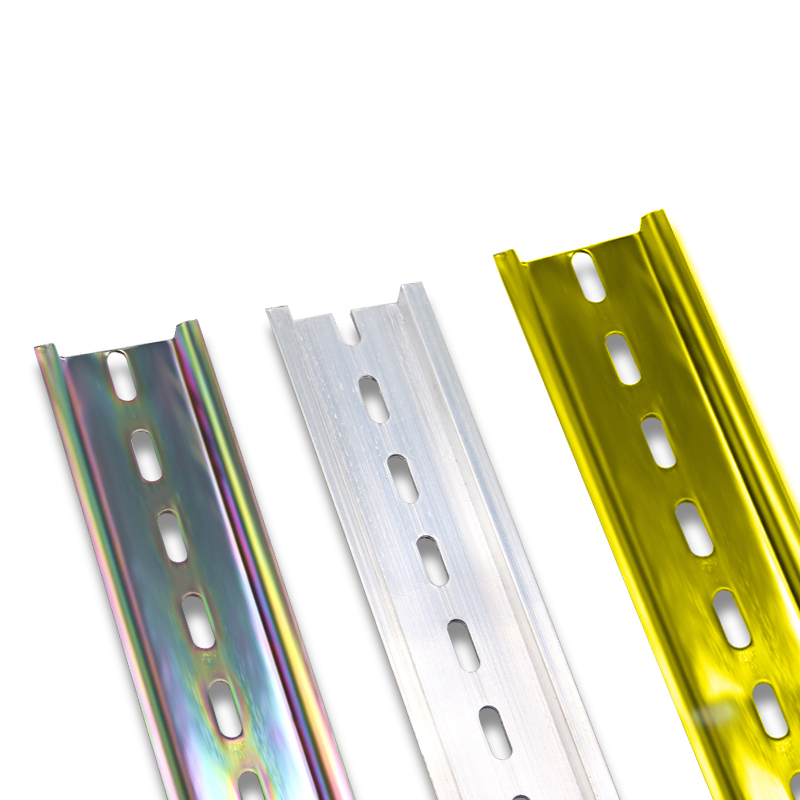

| Colors | Galvanized White, Colorful |
| Standard Products | Galvanized White DIN Rail, Stainless Steel DIN Rail, Aluminum DIN Rail |

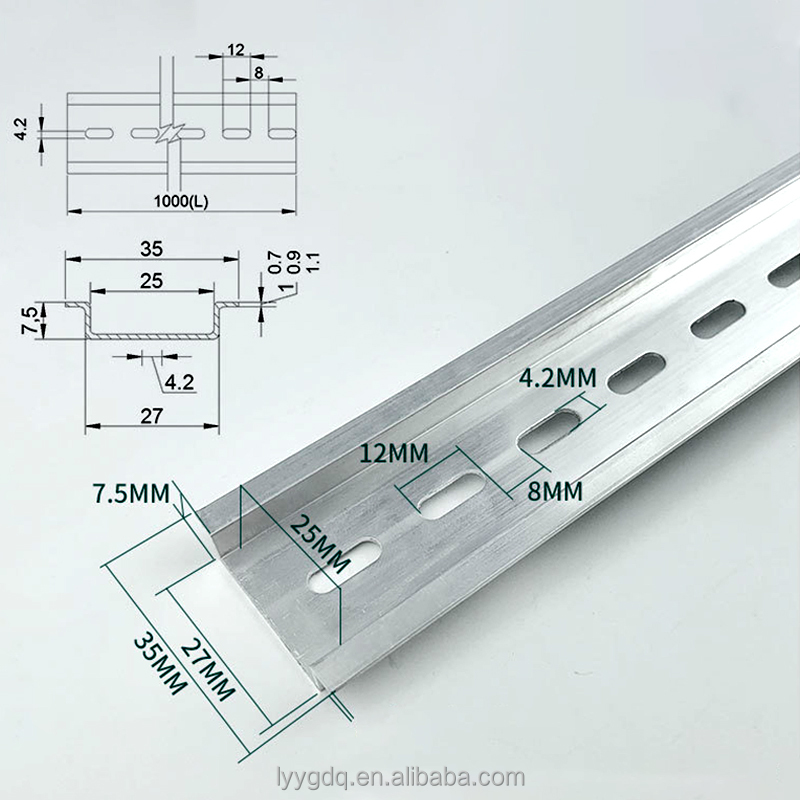

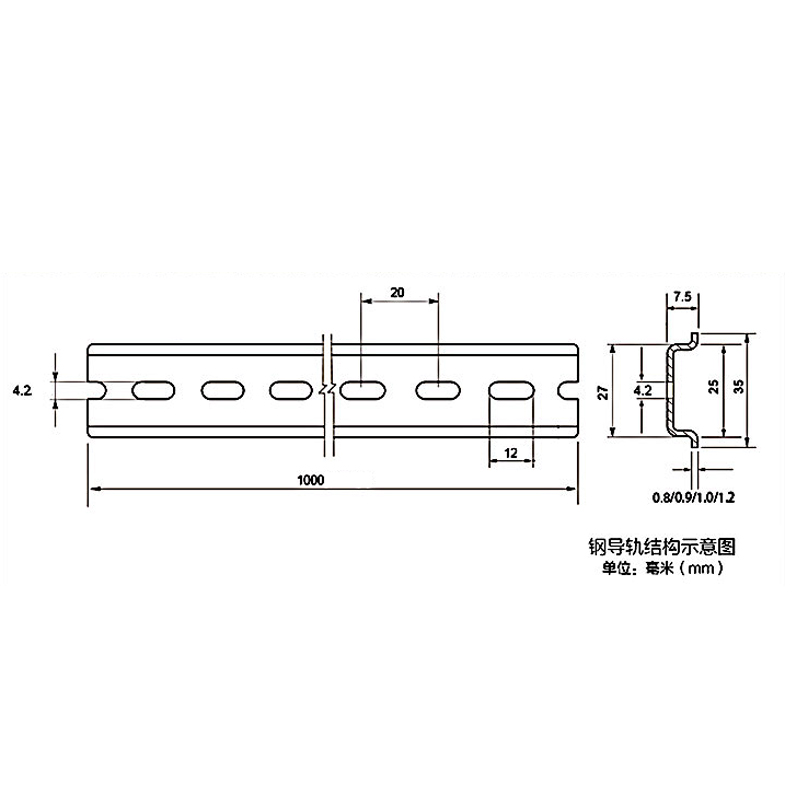

| Size | W35mm x H7.5mm x Length 1 meter, W35mm x H15mm x Length 1 meter |
| Thickness | 0.5mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm |
| Length | 1m, 2m (Customizable Length) |
Product Applications
Electrical Control Panels
Industrial Automation
Power Distribution Systems
Renewable Energy Systems
Automotive and Electric Vehicles

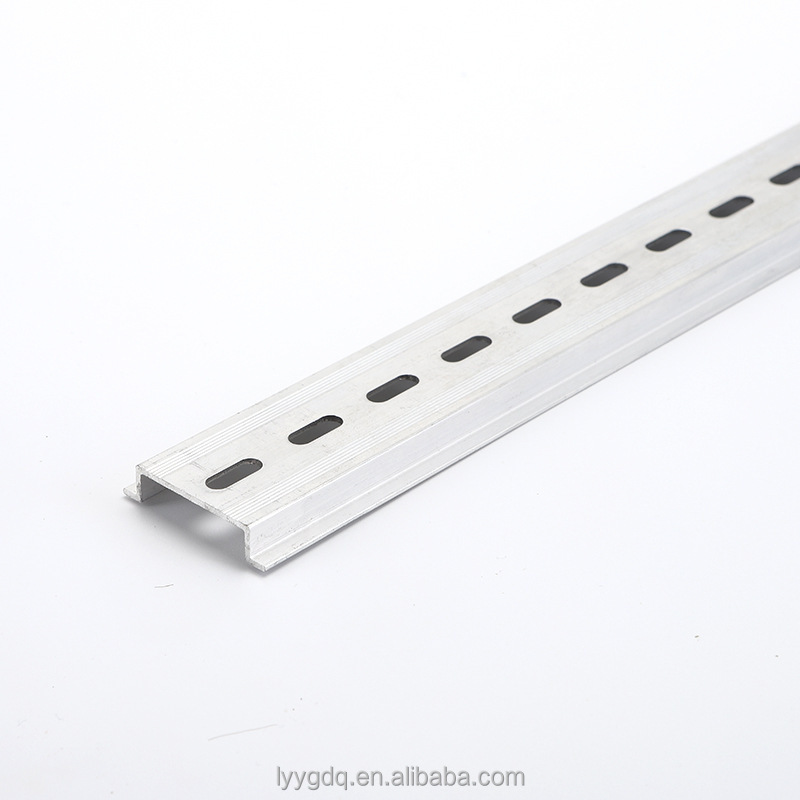

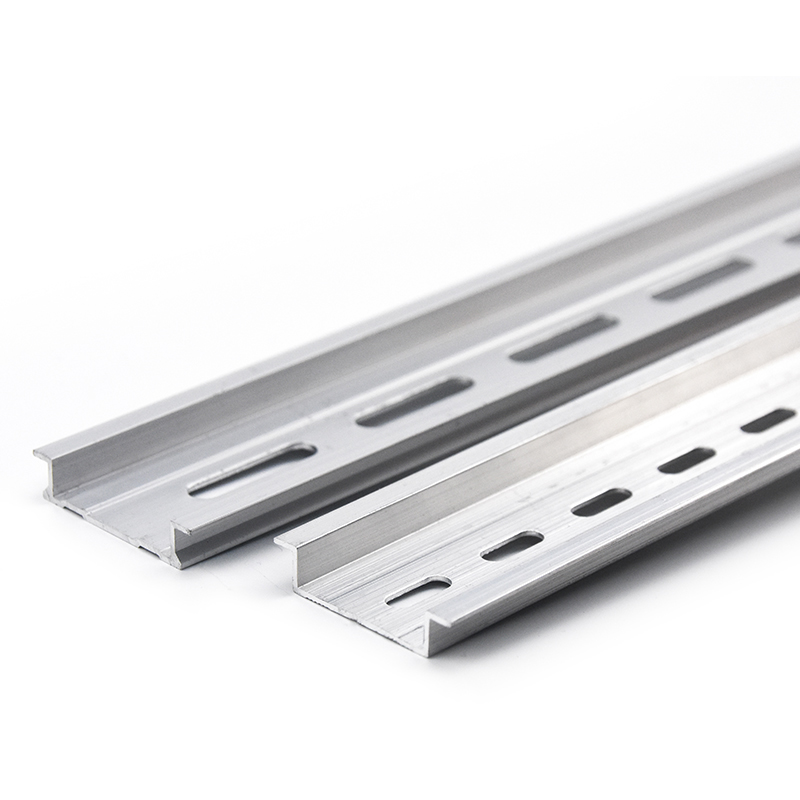

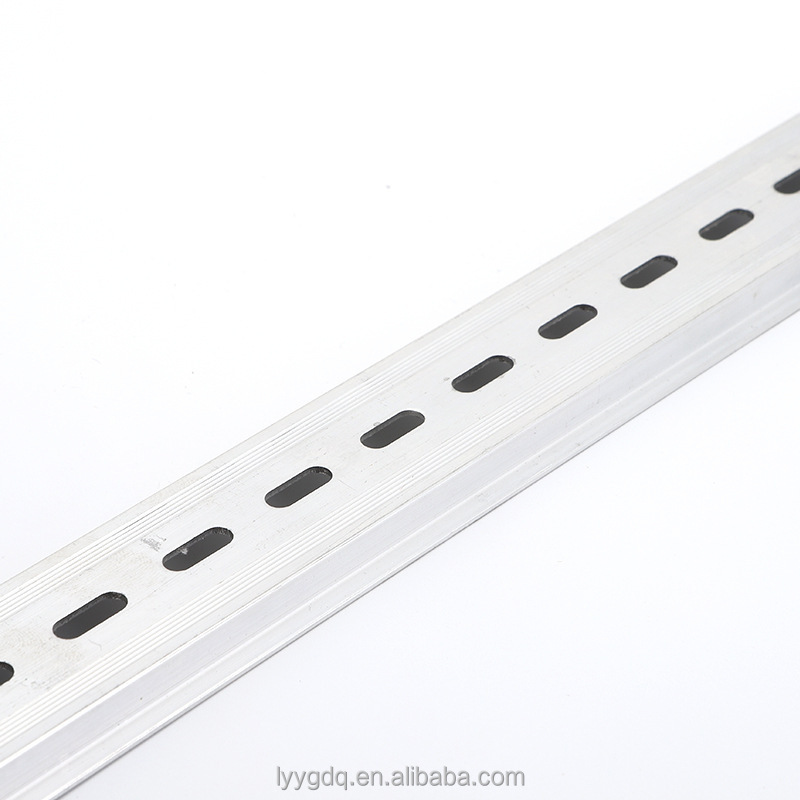

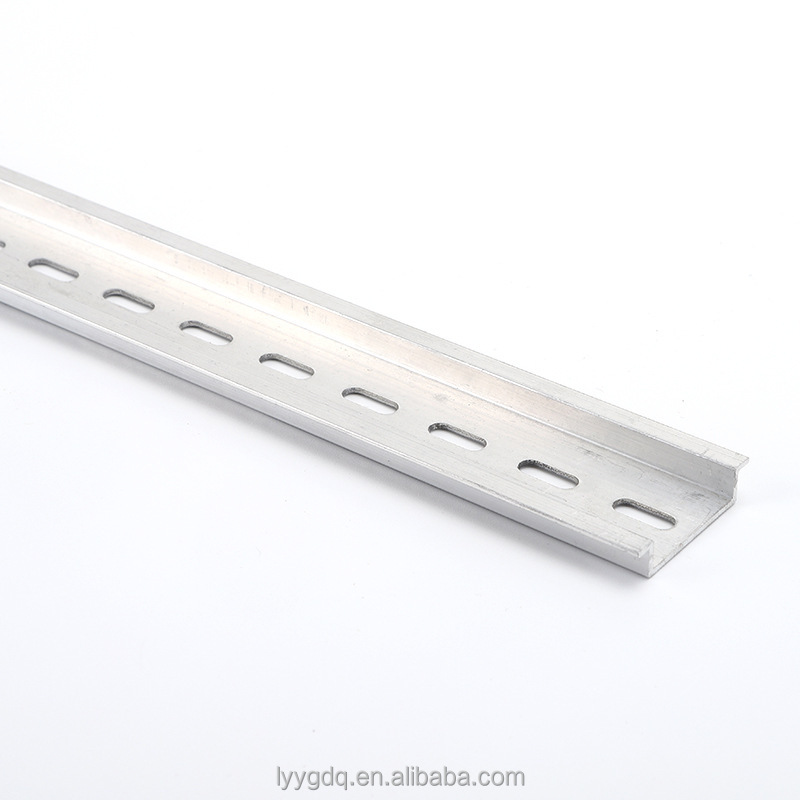

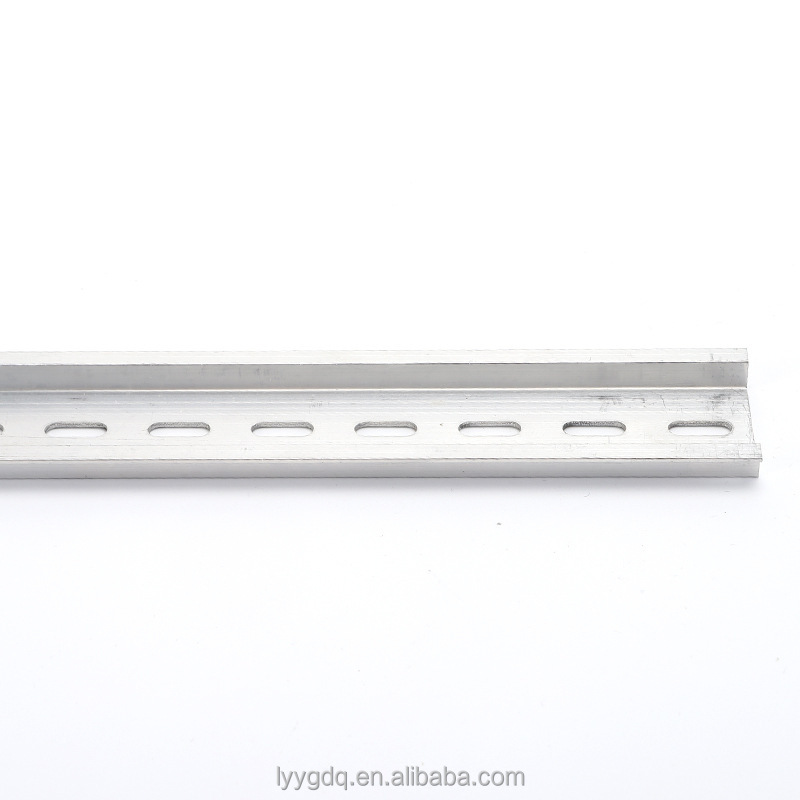

Aluminium Din Rail
