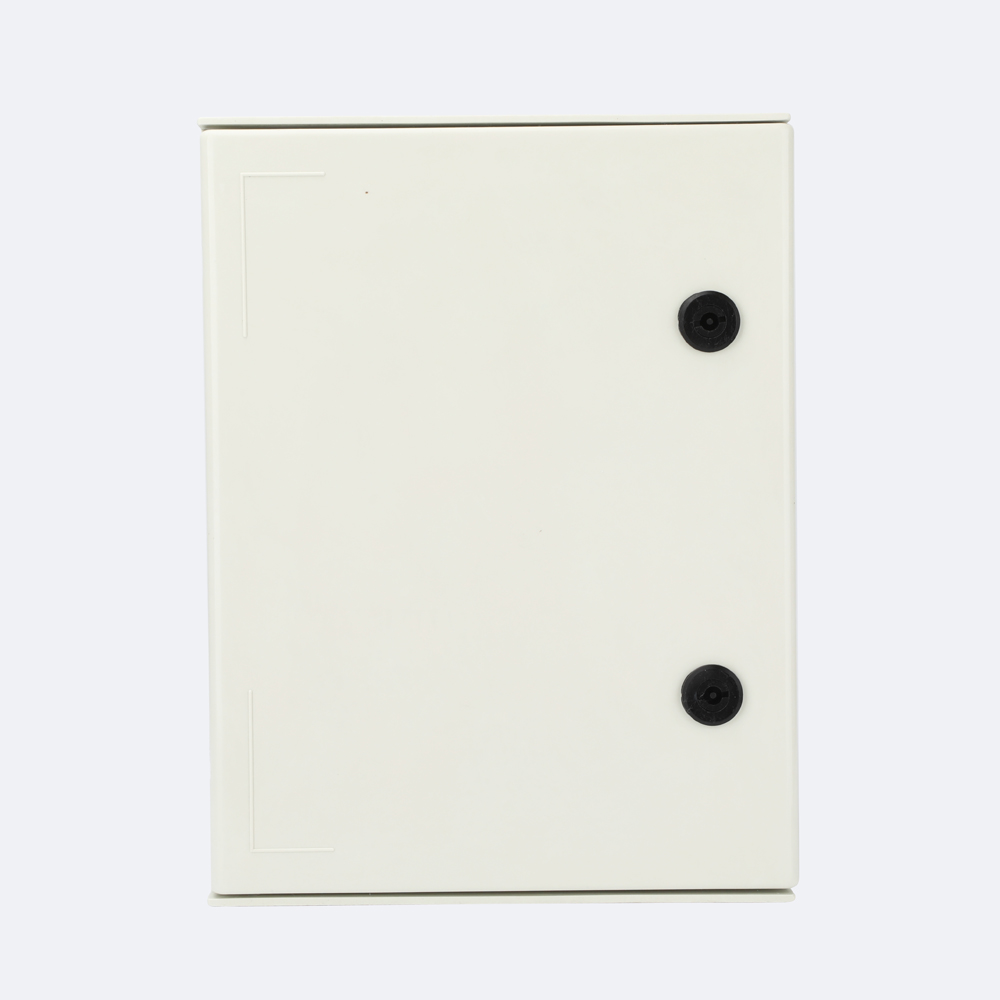

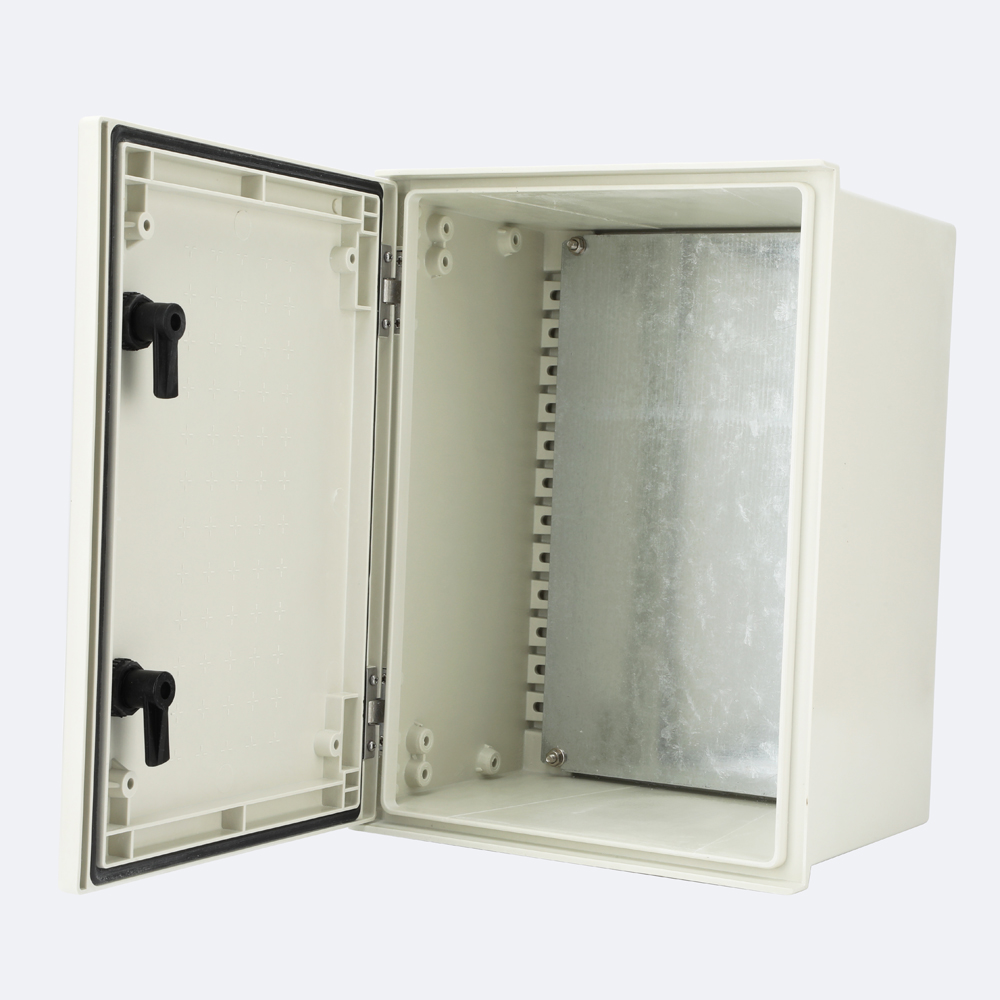

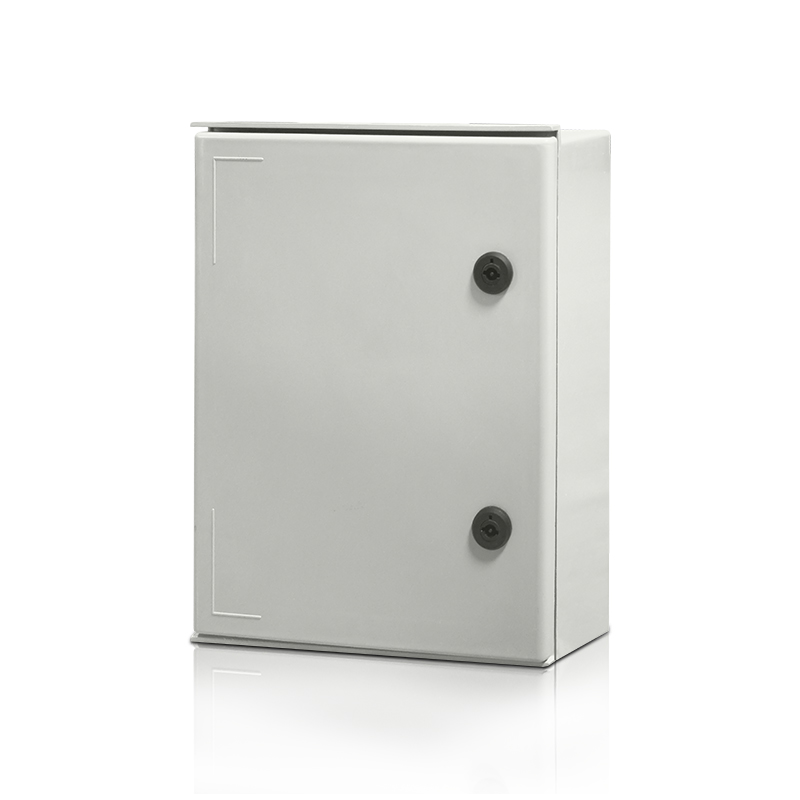

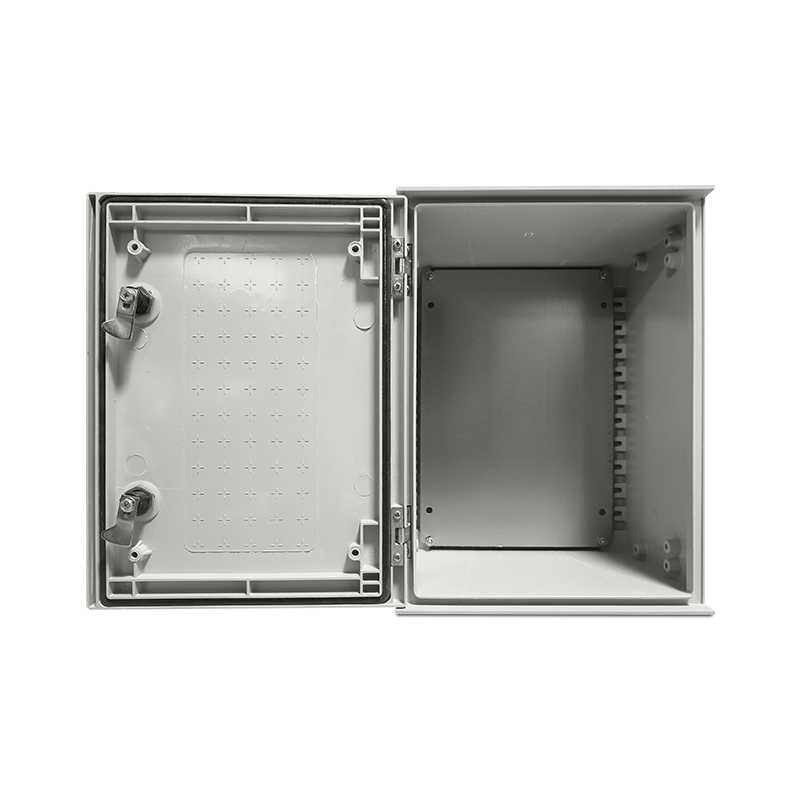

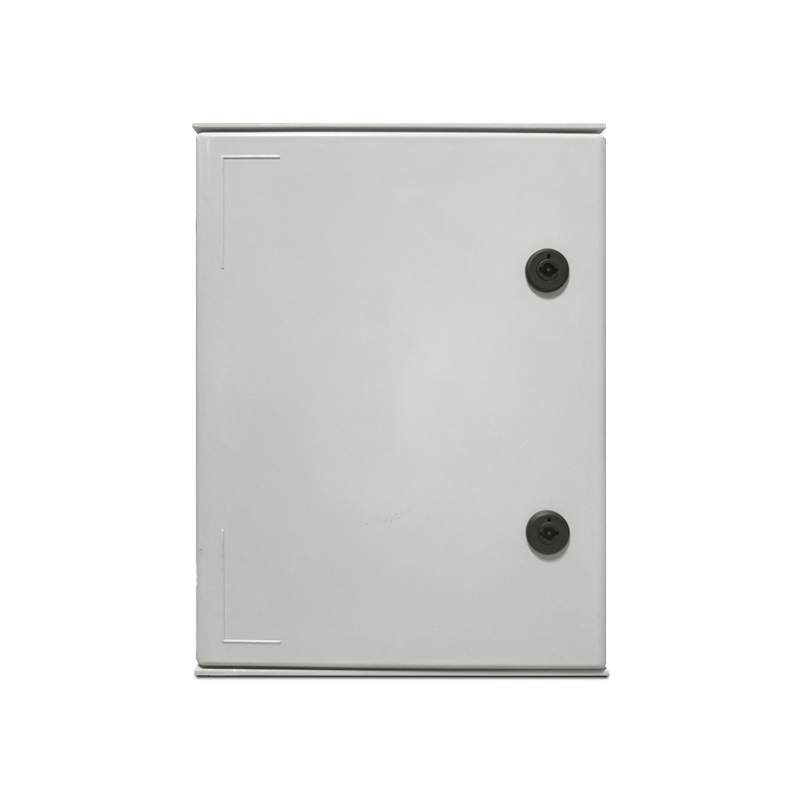

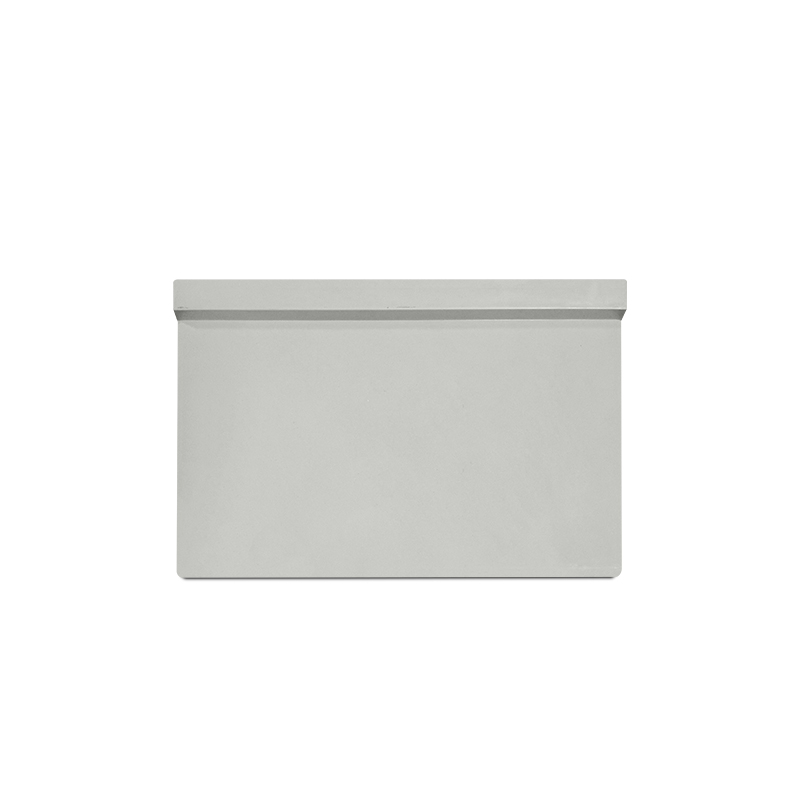

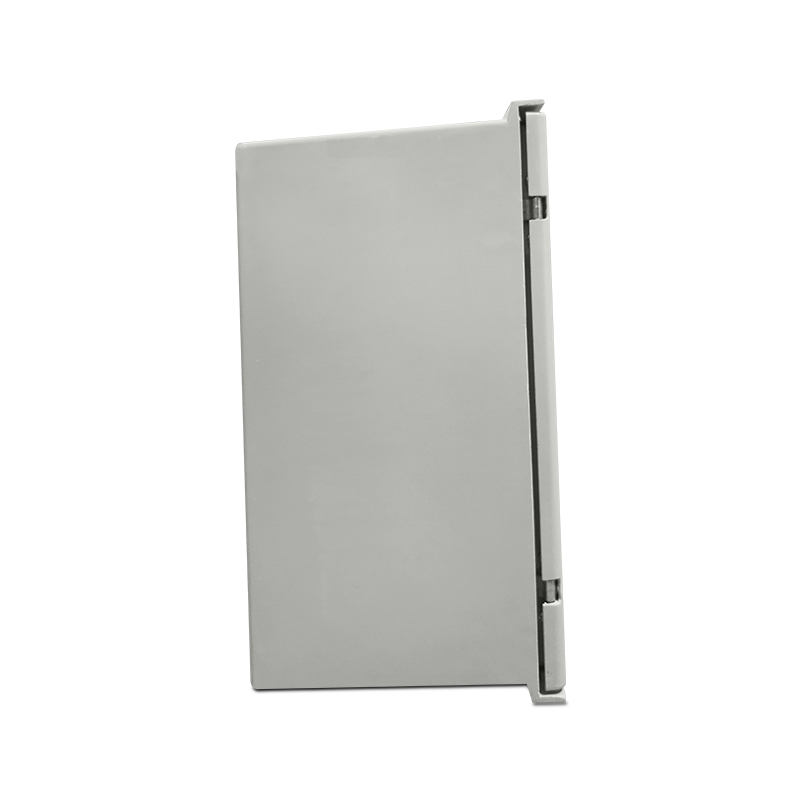

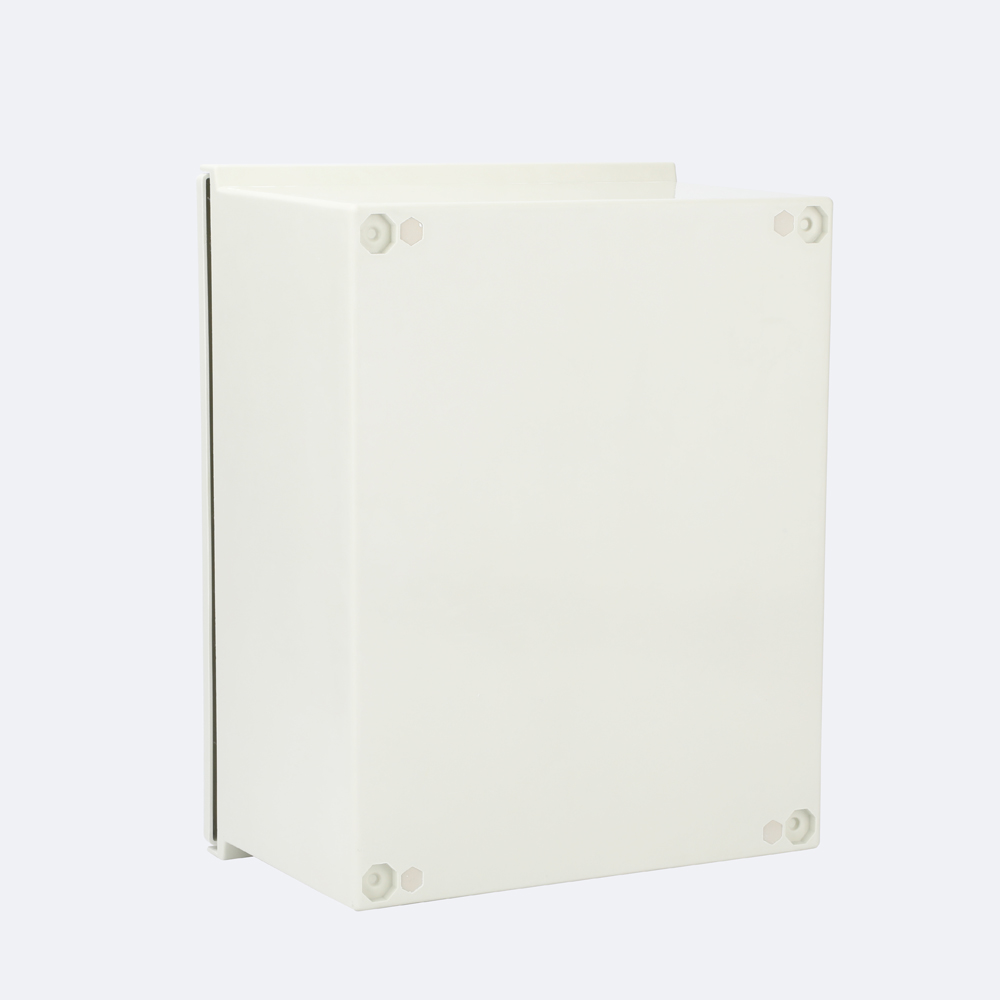

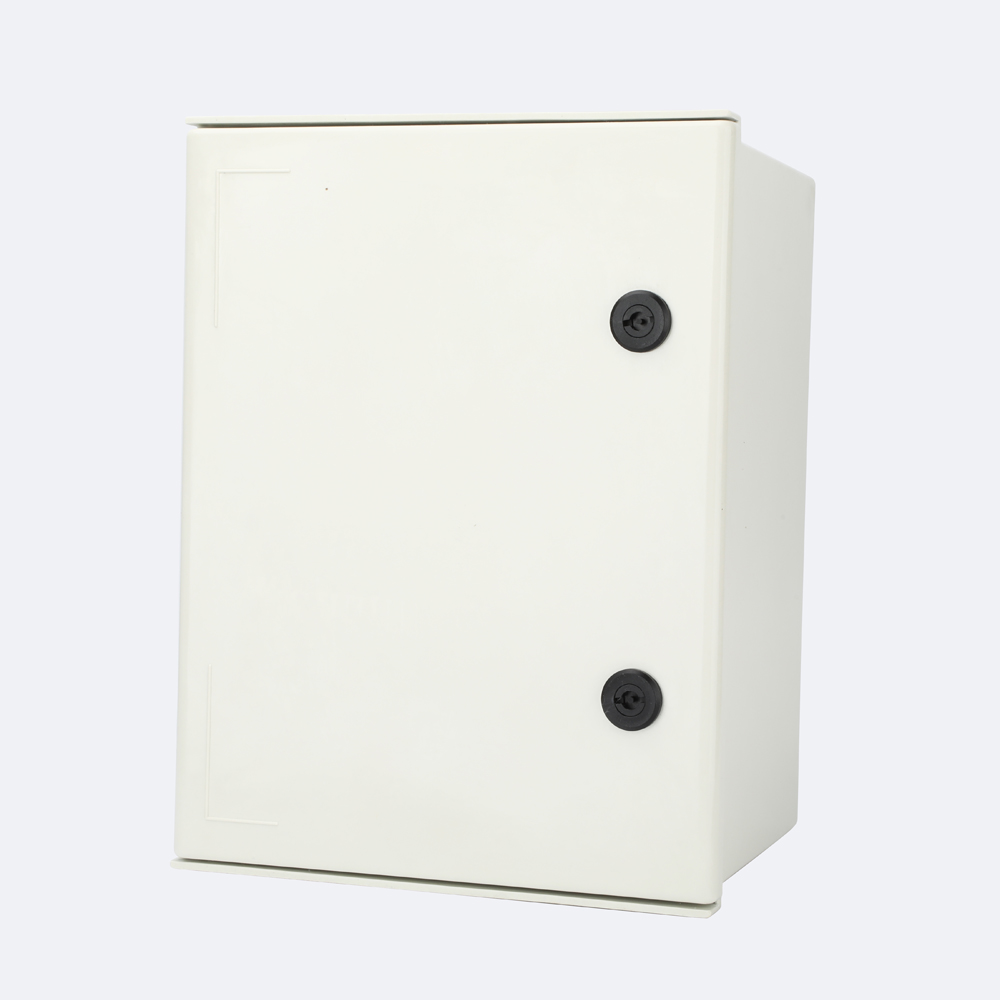

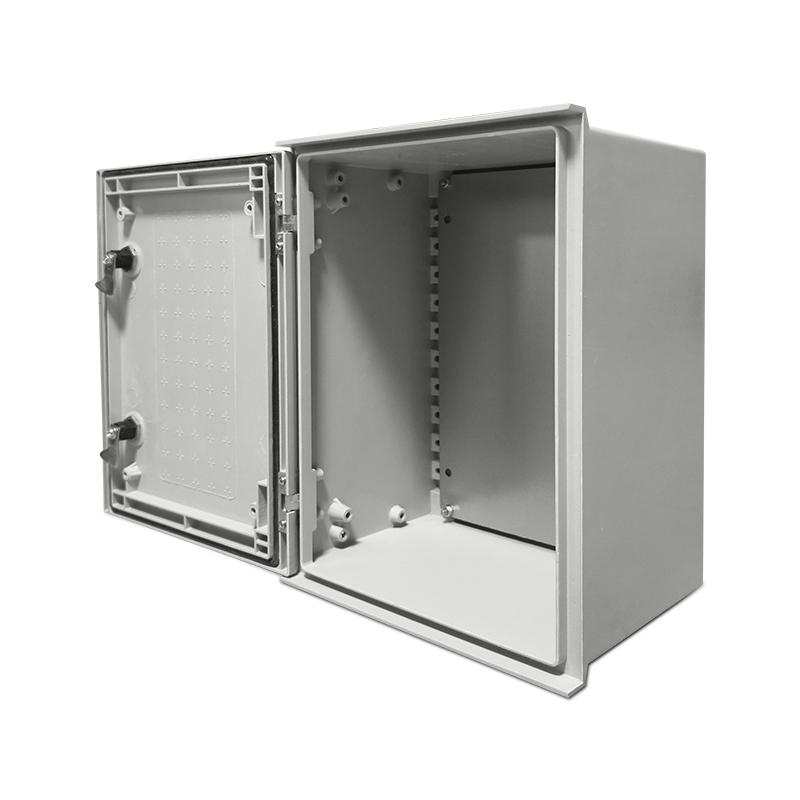

Polyster Enclosure
The Polyester Enclosure is designed for harsh, corrosive, and humid environments. Constructed from durable materials like fiberglass (SMC) and PU waterproof rings, it offers excellent protection with an IP66 rating and IK09 impact resistance. It features a wide temperature range of -40ºC to +120ºC, ensuring reliability in extreme conditions. Suitable for use in terminal boxes, power distribution, control boxes, and more.
Key Features
- Durable Construction: Made with high-quality materials, including
- Fiberglass (SMC) for the enclosure and cover, PU waterproof ring, Zinc alloy hinges, and a PA66 lock for robust performance.
- Superior Protection: Offers IP66 protection (dust-tight and resistant to powerful water jets) and is rated for IK09 mechanical impact resistance, making it ideal for harsh environments.
- Wide Temperature Range: Withstanding temperatures from -40ºC to +120ºC (short time) and -40ºC to +100ºC (continuous), ensuring reliability in extreme weather conditions.
- Versatile Applications: Perfect for use as a terminal box, measuring box, power distribution box, control box, and more, particularly in corrosive and humid environments.
- CE and RoHS Approvals: Meets international quality standards for safety and environmental compliance.
- Optional Accessories: Includes optional items like Polyester mounting plates and Key locks for enhanced functionality.
Product Specifications
| Material (Enclosure & Cover) | Fiberglass (SMC) |
| Waterproof Ring | PU |
| Hinge | Zinc Alloy |
| Lock | PA66 |
| Mounting Plate | Galvanized Steel Plate |
| Wall Mounting Bracket | ABS |
| Color | Gray |
| Protection Category (IP Rating) | IP66 |
| Mechanical Impact Resistance | IK09 |
| Approvals | CE, RoHS |
| Applications | Terminal Box, Measuring Box, Power Distribution Box, Control Box, Socket Box, etc. |
| Ambient Temperature Range (Short Time) | -40ºC ~ +120ºC |
| Ambient Temperature Range (Continuous) | -40ºC ~ +100ºC |
| Standard Products Include | Box Bottom, Box Cover, Universal Key, Plastic Wall Mounting Bracket, Galvanized Mounting Plate |
| Optional Accessories | Polyester Mounting Plate, Key Lock |
| Size List | 250*300*140, 300*400*200, 400*400*200, 400*500*200, 400*600*230, 500*600*230, 600*800*300 |
Product Applications
Electrical & Power Distribution Systems
Measuring Box, Terminal Box
Telecommunication Equipment
Power Distribution Box
Battery Storage System
